Ultra-compact, High Resolution,
Optical Rotary Encoders

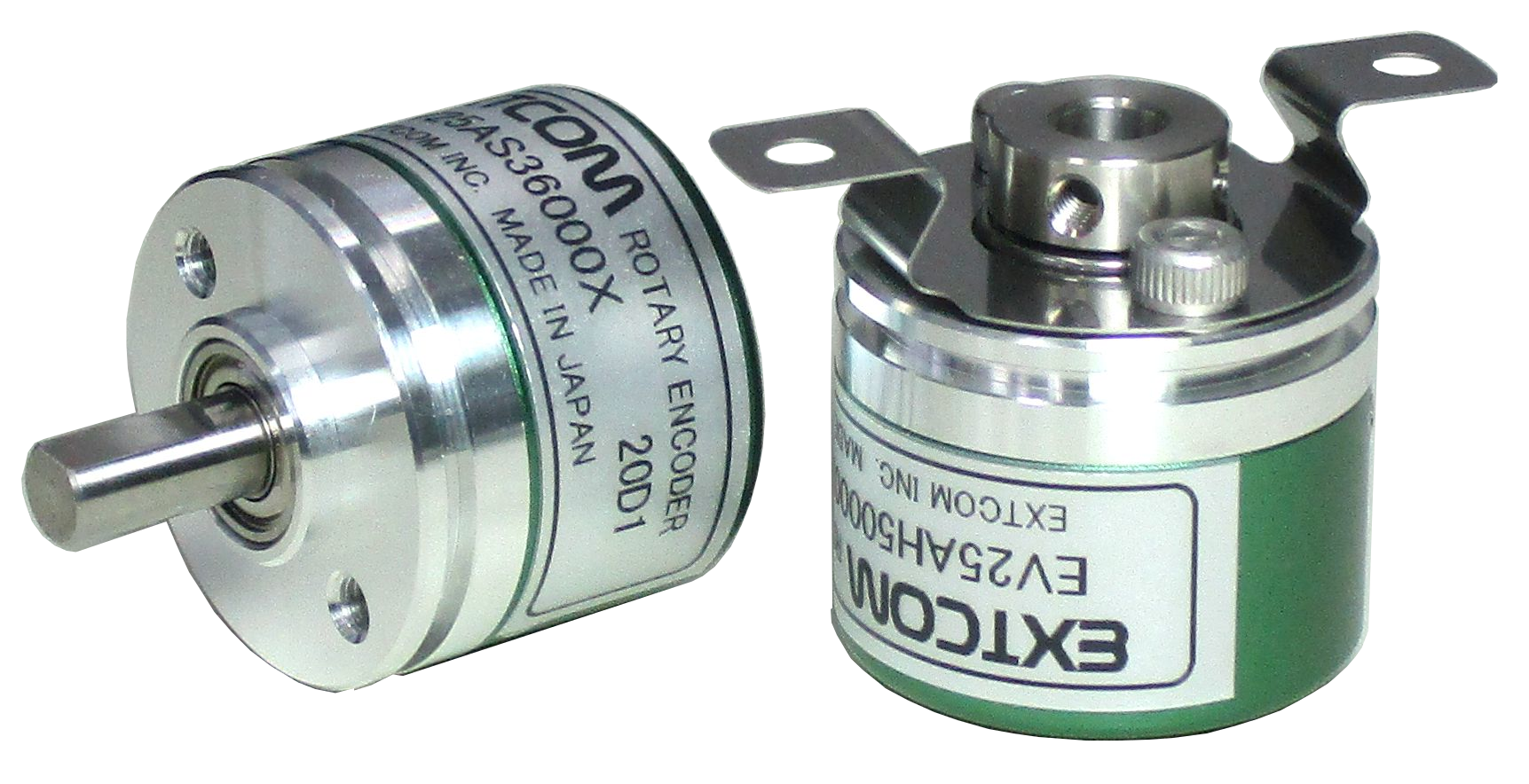

EV25A Series/Outer Diameter φ 25 mm
Compact, high resolution rotary encoders
Incremental, optical type
Product size: φ 25 mm × 20 mm
A, B, and Z phase, square waves
Voltage, open collector and line driver output
Resolution: 500 P/R to 62500 P/R

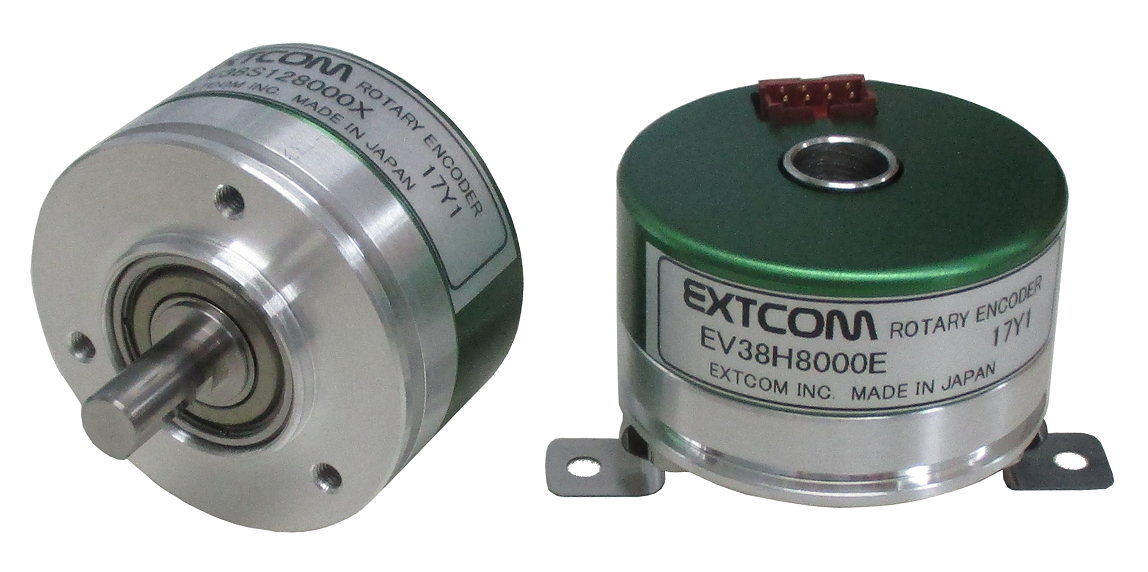

EV38 Series/Outer Diameter φ 38 mm
Compact, high resolution rotary encoders
Incremental, optical type
Product size: φ 38 mm × 22 mm (H)
A, B, and Z phase square waves
Voltage, open collector and line driver output
Resolution: 500 P/R to 125000 P/R
MES-6 Series/Outer Diameter φ 7.5 mm
Ultra-compact, high resolution rotary encoders
Incremental, optical type
Product size: φ 7.5 mm × 10.5 mm (H)
A-, B-, Z-phase square waves
Open collector output
Resolution: 100 P/R to 500 P/R
MES-9 Series/Outer Diameter φ 13 mm
Ultra-compact, high resolution rotary encoders
Incremental, optical type
Product size: φ 13 mm × 20 mm (H)
A-, B-, Z-phase square waves
Voltage output, open collector output, line driver output
Resolution: 100 P/R to 1024 P/R
